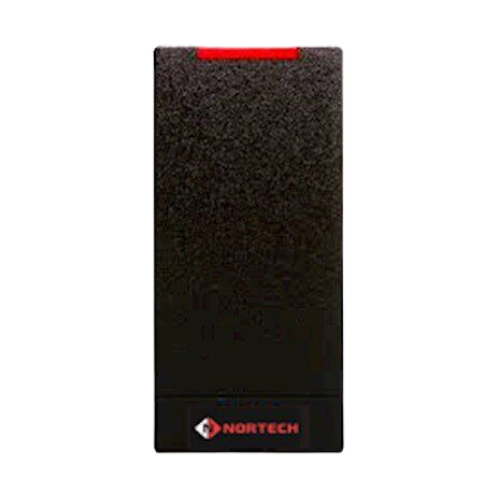

RP10-Indala Reader
'Secure Proximity Readers'
The RP10 is a rugged, state-of-the-art RFID reader that has been specifically configured to read Indala credentials and provide a Clock & Data output format that makes it a like-for-like replacement for the Indala ASR-603 and VPB-603 readers.
Request QuotePRODUCT FEATURES & BENEFITS
Indala RFID technology is a well-proven proprietary proximity card and fob system that has been used for building security for many years. It provides a reliable, high-level of security and has been the chosen solution for hundreds of projects. With the discontinuation of the Indala reader range by the manufacturer, the RP10-Indala is ideally suited to the continued support of Indala-based access control projects.
Benefits
- Attractive modern housing design
- Reads standard Indala format data from credentials
- Range of compatible cards and fobs available
- Rugged, weatherproof polycarbonate enclosure, designed to withstand harsh environments and provide resistance to vandalism
- Reliable performance at up to 4cm
- High-intensity 3-colour light bar provides a clear visual status indication, even in bright sunlight.
- Single piece construction
- Easy installation
- Compact modular design
- 5 to 16 VDC operation
Specifications
| Output formats: | Wiegand, ABA Track II (Clock & Data), Serial |
| Typical Read Range: | Cards - 4 cm, Fobs - 2 cm |
| Mounting: | Ideally suited for mullion-mounted door installations or any flat surface |
| Mounting Spacer: | To be used when mounting on metallic surfaces.Contact Nortech for ordering information |
| Colour: | Black |
| Dimensions: | 4.8 cm x 10.3 cm x 2.3 cm |
| Product Weight: | 114g |
| Operating Voltage Range: | 5-16 VDC, linear supply recommended |
| Current Draw: | 75mA |
| Peak Current Draw: | 200mA |
| NSC3 Power Consumption: | 1.2W (@ 16VDC) |
| Operating Temperature: | -35º to 65º C |
| Storage Temperature: | -55º to 85º C |
| Operating Humidity: | 5% to 95% relative humidity non-condensing |
| Environmental Rating: | Indoor/Outdoor IP65 |
| Transmit Frequency: | 125 kHz |
| Communications: | Clock-and-Data Interface 150m (22AWG) - Use Shielded cable for best results |
| Panel Connection: | Pigtail (46cm) |
| Housing Material: | UL94 Polycarbonate |
| Warranty: | Limited Lifetime |
