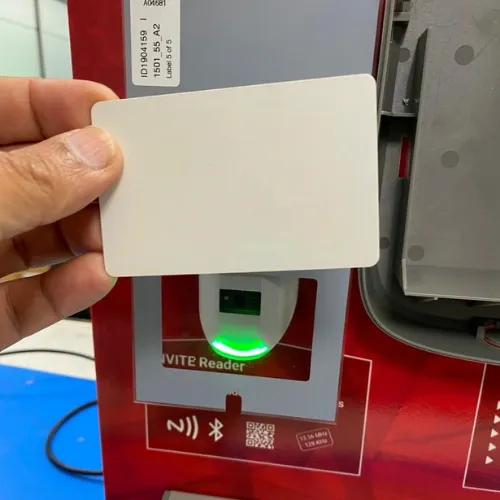

NVITE Multiple Technology Reader
'Reading cards, QR codes and Smartphones in a single device'
NVITE is a multiple technology reader for contactless identification. It supports a wide range of credential technologies: QR: Quick Response and most mainstream 1D and 2D barcodes Proximity card (125 kHz): Nedap, HID Prox, EM4200, AWID Smartcard (13.56 MHz): LEGIC advant and prime, MIFARE (DESFire), HID iClass, Sony Felica BLE and NFC: Secure communication with third party mobile Apps, based on Nedap Mobile ID protocol
Request QuotePRODUCT FEATURES & BENEFITS
Communication Interfaces
NVITE ensures seamless integration and supports a variety of well-established industry-standard protocols, such as Wiegand, clock & data and serial connections such as RS485. It also supports the Open Supervised Device Protocol (OSDP) for advanced and secure communication between the NVITE reader and the control panel.
LED and beeper indication
The built-in high intensity red, green and blue LED’s provide the user with visual feedback that the credential has been read or authorised. The LED and beeper functionality can be either controlled by the access control panel or pre-reconfigured.
Easy installation
The NVITE reader is ideal for mounting at a height of about 1.5 metres. The reader is IP65 rated, so it can be used outdoors as well as indoors. The reader is fitted with a tamper switch.
benefits
- Reads multiple credential technologies, supporting Smartcards, Proximity cards, QR codes, Bluetooth and NFC
- Enables contactless identification
- Mobile ID Protocol for implementation with third party Apps
- OSDP v2 supported including secure channel protocol
Specifications
| Dimensions: | 150 x 50 x 40 mm |
| Colour: | RAL9006 cover and RAL7016 chassis |
| Weight: | 0.5 kg |
| Protection class: | IP65 |
| Material: | Aluminium (Zamak5) chassis with polycarbonate cover |
| Operating temp: | -20...+60°C |
| Storage temp: | -20...+60°C |
| Relative humidity: | 10% ... 93% relative humidity, non-condensing |
| Power supply: | 12 to 24 VDC (from power-limited UL294 or UL603 Listed power source) |
| Power consumption: | 0.4A@12VDC, 0.2@24VDC |
| Read range: | BLE: up to 15 metres (may be restricted by mobile app) NFC, LF proximity card and smartcard: up to 5cm |
| Barcode scanner: | QR-code (QR1, QR2, QR micro), as well as most mainstream 1D and 2D barcodes |
| Operating freq.: | Bluetooth Low Energy 2.402 - 2.480 GHz NFC & smartcards: 13.56 MHz Proximity cards: 120 kHz |
| Supported RFID cards: |
120/128 kHz: Nedap + EM4200 + HID-PROX + AWID-LF 13.56 MHz: ISO14443A, LEGIC advant, LEGIC prime, HID iCLASS, MIFARE DESFire (EV1/EV2), MIFARE Classic, MIFARE Ultralight (C), MIFARE Plus (SL3), ISO15693 and Sony Felica |
| Comm's interfaces: | RS485 and USB2 service interface, additional interfacing options exist - please consult our sales team |
| Comm's protocols: | Comm's protocols: CR/LF and OSDP. Mobile ID Protocol available on request - please consult our sales team |
| Input: | 2 TTL digital inputs for LED control (RED/GREEN), 1 TTL digital input for beeper control |
| Output: | 2 open-collector outputs (OSDP) Wiegand, Magstripe ISO7811/2 (clock & data) |
| Max. cable length: | Fixed 5 metre pigtail cable included Wiegand 150 metres 22 AWG RS485 1200 metres when installed correctly |
| Tamper switch: | Magnetic switch, normally closed |
| Standards: | Europe Directive 2014/53/EU (RED) USA: FCC Title 47 Part 15B and 15C Canada: ISED ICES-003 and RSS210 |
| Safety: | EN62368 |
| EMC: | EN301489 |
| Telecom: | EN330 330 and EN300 328 |
| Human Exposure assessment: | ICNIRP Guidelines, EN62369 and EN50364. UL294 |
