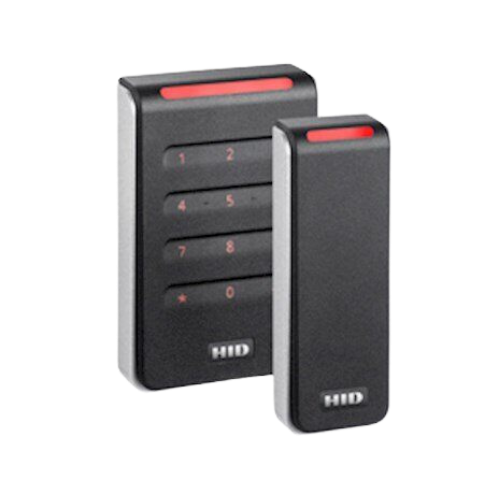

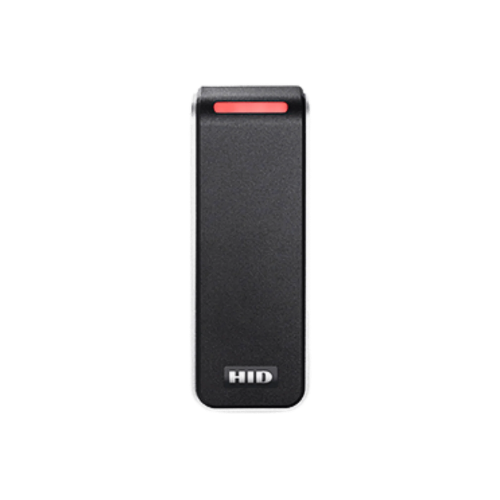

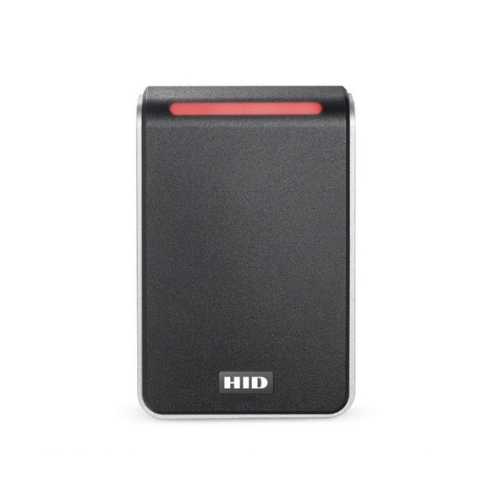

HID® Signo™ Readers Models: 20, 40, 20K, 40K

'Ready For The Future Now'

HID Signo™ is the signature line of physical access control readers from HID Global. The versatility, performance and connected capabilities of HID Signo readers set a new industry benchmark for the most highly adaptable, interoperable and secure approach to electronic access control.

Request Quote

PRODUCT FEATURES & BENEFITS

Highly Versatile

Support for the widest range of credential technologies, including HID Mobile Access® via native Bluetooth and Near Field Communication (NFC).

Unparalleled Performance

Ultra secure storage of cryptographic keys on certified secure element hardware, plus a new surface detection feature that enables the reader to automatically re-calibrate and optimise read range performance.

Connected to the Future

All readers include out-of-the-box support for Open Supervised Device Protocol (OSDP) for secure bidirectional communication.

Offering an unparalleled breadth of functionality, HID Signo affords security system installers and administrators a simple and effective approach to secure access control for almost any scenario.

With support for the widest array of credential technologies — past, present and future — HID Signo is the perfect choice for those looking to make the transition to a secure authentication technology.

HID Signo readers transcend the traditional approach to security by being designed to be connected and managed remotely without needing to physically touch each device. This functionality empowers access control systems to dynamically respond as new needs, configurations or threats arise.

features

Powerfully Secure

Multi-Layered security to ensure data authenticity and privacy
EAL5+ Certified Secure Element Hardware
Native OSDP secure channel capability
Trusted secure authentication using the SIO data model
Supports iCLASS Elite™ and Corporate 1000 Programs

Meet Every Need, Adapt To Any Situation

Go mobile with native Bluetooth and NFC support
Integrated 125 kHz credential read support for easy migration
Supports over 15 common credential technologies
Flush mount terminal block and pigtail wiring options
Robust outdoor performance with an IP65 rating

Manage, Upgrade And Configure

Easily and securely managed using HID Reader Manager®
Configure via a mobile device or OSDP
Update firmware in response to threats
Personalise by configuring audio visual or keypad settings
Deactivate legacy credential technology to conclude secure migration

Connect

Email Us

Specifications

HID Signo Reader Model	20	20K	40	40K
2.4 GHz (Bluetooth) Credential Compatibility	Mobile Credentials powered by Seos® (HID Mobile Access)
13.56 MHz (NFC) Credential Compatibility	Seos, iCLASS SE®, iCLASS SR®, iCLASS®, MIFARE Classic, MIFARE DESFire EV1/EV2, FeliCa™ & Contactless e-Purse Application Specification (CEPAS), Mobile Credentials powered by Seos (HID Mobile Access)
125 kHz Credential Compatibility	HID Proximity®, Indala® Proximity, AWID Proximity, and EM Proximity
Typical Read Range (Note 1)	Seos®, MIFARE Classic, MIFARE DESFire EV1/EV2 & ISO14443A Single Technology Cards – 4 to 10 cm HID / AWID Proximity®, Indala Proximity®, EM Proximity & 125 kHz Single Technology Cards – 6 to 10 cm
Mounting	Suited for mullion-mount door installations or any flat surface mounting		Suited to mount and cover single gang switch boxes with a slotted mounting plate for alternate back-box spacing
Colour	Black bezel with silver trim baseplate (Note 2)
Keypad	No	Yes (2 x 6 layout)	No	Yes (3 x 4 layout)
Dimensions (width x length x depth)	45 mm x 121.5 mm x 19.5 mm	45 mm x 121.5 mm x 21.5 mm	80 mm x 121.5 mm x 19.5 mm	80 mm x 121.5 mm x 21.5 mm
Product Weight	Pigtail: 95 g Terminal: 75 g	Pigtail: 110 g Terminal: 90 g	Pigtail: 140 g Terminal: 120 g	Pigtail: 160 g Terminal: 140 g
Operating Voltage	12V DC
Current Draw (Note 3)	NSC (Note 4): 60 mA Peak: 250 mA Max. Avg: 70 mA IPM (Note 5): 45 mA	NSC (Note 4): 65 mA Peak: 250 mA Max. Avg: 75 mA IPM (Note 5): 48 mA	NSC (Note 4): 65 mA Peak: 250 mA Max. Avg: 75 mA IPM (Note 5): 45 mA	NSC (Note 4): 70 mA Peak: 250 mA Max. Avg: 80 mA IPM (Note 5): 55 mA
Device Input and Output	Input: Tri-colour LED, Buzzer, Hold @ Active Low Output: Tamper Relay 0-60V DC @ 100mA Max (Dry Contact)
Operating Temperature & Humidity	-35° C to +66° C 0% to 95% non-condensing
Storage Temperature	-40° C to +85° C
Environmental Rating	UL294 Outdoor and Indoor rated, IP65
Transmit Frequency	125 kHz, 13.56 MHz, and 2.4 GHz
Communications & Panel Connection	Wiegand, Clock-and-Data and RS-485 Half Duplex (OSDP) via Pigtail (0.5 m) or Terminal Strip
Device Management	HID Reader Manager / OSDP configuration
Certifications	UL294/cUL (US), FCC (US), IC (Canada), CE (EU), RCM (Australia, New Zealand), SRRC (China), KCC (Korea), NCC (Taiwan), iDA (Singapore), RoHS, MIC (Japan), GreenCircle, Bluetooth SIG, and additional regions. www.hidglobal.com/certifications
Security Ratings	EAL 5+ Certified Secure Element Hardware
Housing Materials	Polycarbonate – UL94 V0

1	Read range listed is statistical mean rounded to nearest centimetre increment for ID-1 or clamshell credentials. HID Global testing occurs in open air. Form factor, technology and environmental conditions, including metallic mounting surface, can degrade read range performance; plastic spacers are recommended to improve performance on metallic mounting surfaces
2	Black trim baseplate & reader spacers available as an additional accessory at an additional cost.
3	Measured in accordance with UL294 standards; see Installation Guide for details
4	NSC – Normal Standby Current; see Installation Guide for details.
5	Intelligent Power Management (IPM) – Reduces reader current consumption up to 43%, based on model, compared to standard operating mode.
